IP65 Demex Metal Enclosures


Material: Galvanized Steel

Protection Rating: IP65

Surface Finishing: Epoxy-polyester powder coating

Colour: RAL 7032


*Enclosure comes with base plate, sealing gasket, earthing studs and mounting accessories.

Enclosure



Model H (mm) W (mm) D (mm) No. of Lock Cable Entry (mm)
DM-22D150 200 200 150 1 122 x 40
DM-2520D150 250 200 150 1 122 x 40
DM-32D150 300 200 150 1 122 x 40
DM-3025D150 300 250 150 1 180 x 62
DM-3025D200 300 250 200 1 180 x 62
DM-33D150 300 300 150 1 216 x 62
DM-33D200 300 300 200 1 216 x 62
DM-34D150 300 400 150 1 216 x 62
DM-34D200 300 400 200 1 216 x 62
DM-43D150 400 300 150 1 216 x 62
DM-43D200 400 300 200 1 216 x 62
DM-44D200 400 400 200 1  216 x 62
DM-44D250 400 400 250 1  216 x 62
DM-54D150 500 400 150 1 216 x 62
DM-54D200 500 400 200 2 317 x 90
DM-54D250 500 400 250 2 317 x 90
DM-55D200 500 500 200 2 317 x 90
DM-55D250 500 500 250 2 317 x 90
DM-64D150 600 400 150 2 216 x 62
DM-64D200 600 400 200 2 317 x 62
DM-64D250 600 400 250 2 317 x 62
DM-65D150 600 500 150 1 216 x 62
DM-65D200 600 500 200 2 317 x 90
DM-65D250 600 500 250 2 317 x 90
DM-66D200 600 600 200 2 317 x 90
DM-66D250 600 600 250 2 317 x 90
DM-66D300 600 600 300 2 317 x 90
DM-75D200 700 500 200 2 317 x 90
DM-75D250 700 500 250 2 317 x 90
DM-86D200 800 600 200 2 317 x 90
DM-86D250 800 600 250 2 317 x 90
DM-86D300 800 600 300 2 317 x 90
DM-88D200 800 800 200 2 317 x 90
DM-88D250 800 800 250 2 317 x 90
DM-88D300 800 800 300 2 317 x 90
DM-106D250 1000 600 250 2 317 x 90
DM-106D300 1000 600 300 2 317 x 90
DM-108D250 1000 800 250 2 317 x 90 (2X)
DM-108D300 1000 800 300 2 317 x 90 (2X)
DM-126D300 1200 600 300 2  317 x 90 (2X)
DM-128D300 1200 800 300 2 317 x 90 (2X)
DM-1210D300 1200 1000 300 2 317 x 90 (2X)

*Product Specifications Subject To Changes Without Prior Notice.

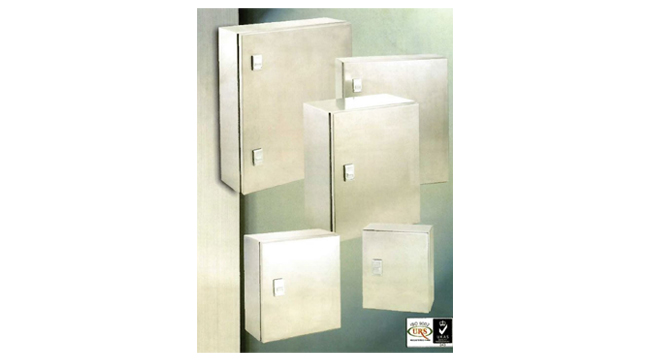

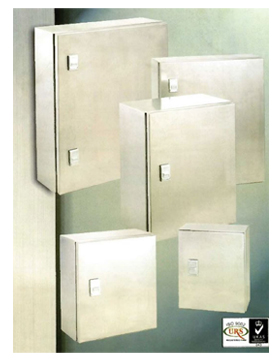

IP66 Demex Stainless Steel Enclosures


Material: Stainless Steel Grade 304 / Stainless Steel Grade 316

Protection Rating: IP66

*Enclosure comes with base plate, sealing gasket, earthing studs and mounting accessories.

Enclosure



Model H (mm) W (mm) D (mm) No. of Lock
DMS-2520D150 250 200 150 1
DMS-32D150 300 200 150 1
DMS-3025D150 300 250 150 1
DMS-33D150 300 300 150 1
DMS-33D200 300 300 200 1
DMS-43D150 400 300 150 1
DMS-43D200 400 300 200 1
DMS-44D200 400 400 200 1
DMS-54D150 500 400 150 1
DMS-54D200 500 400 200 2
DMS-54D250 500 400 250 2
DMS-55D200 500 500 200 2
DMS-55D250 500 500 250 2
DMS-64D200 600 400 200 2
DMS-64D250 600 400 250 2
DMS-65D200 600 500 200 2
DMS-65D250 600 500 250 2
DMS-66D200 600 600 200 2
DMS-66D250 600 600 250 2
DMS-66D300 600 600 300 2
DMS-75D200 700 500 200 2
DMS-75D250 700 500 250 2
DMS-86D200 800 600 200 2
DMS-86D250 800 600 250 2
DMS-86D300 800 600 300 2
DMS-108D300 1000 800 300 2
DMS-128D300 1200 800 300 2

*Product Specifications Subject To Changes Without Prior Notice.

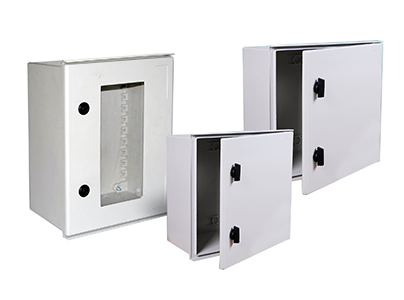

IP65 Toyogiken Polyester Enclosures


Material: Fiberglass-reinforced polyester

Protection Rating: IP65


*Enclosure comes with metal base plate, sealing gasket and mounting accessories.

Polyester enclosure



Model Dimensions (mm)
Solid Door Transparent Door H W D Mounting Plate
TIP-325 TX-325 300 250 150 263 x 201
TIP-43 TX-43 400 300 200 353 x 245
TIP-44 TX-44 400 400 200 349 x 345
TIP-54 TX-54 500 400 200 453 x 345
TIP-64 TX-64 600 400 230 553 x 345
TIP-65 TX-65 600 500 230 553 x 447
TIP-86 TX-86 800 600 300 749 x 540

*Product Specifications Subject To Changes Without Prior Notice.

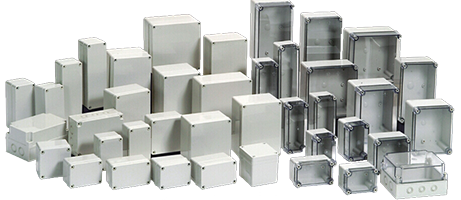

IP66 Toyogiken ABS Junction Boxes


Material: ABS
Protection Rating: IP66
Working Temperature Range: -40°C to +80°C

  • Light-weight (approximately ¼ weight of a metal box)
  • Easy to install, drill and move.
  • Ideal for installation of terminal rails, relays, control components, electrical and communication sensors etc.



ABS Enclosure

Model Dimension (mm)
Solid Cover Transparent Cover W x H x D D1 D2 W3 H3
AG-0506 AT-0506 50 x 65 x 55 40 15 37 52
AG-0609 AT-0609 65 x 95 x 55 35 20 50 79
AG-0712 AT-0712 75 x 125 x 75 50 25 56 107
AG-0712-1 AT-0712-1 75 x 125 x 100 50 50 56 107
AG-0811-S AT-0811-S 80 x 110 x 45 25 35 62 92
AG-0811 AT-0811 80 x 110 x 70 50 20 62 92
AG-0811-1 AT-0811-1 80 x 110 x 85 50 35 62 92
AG-0813 AT-0813 80 x 130 x 70 50 20 62 112
AG-0813-1 AT-0813-1 80 x 130 x 85 50 35 62 112
AG-0816-S AT-0816-S 80 x 160 x 55 40 15 68 146
AG-0816 AT-0816 80 x 160 x 90 75 15 68 146
AG-0818 AT-0818 80 x 180 x 70 50 20 62 162
AG-0818-1 AT-0818-1 80 x 180 x 85 50 35 62 162
AG-0825 AT-0825 80 x 250 x 70 50 20 62 232
AG-0825-1 AT-0825-1 80 x 250 x 85 50 35 62 232
AG-1212-S AT-1212-S 125 x 125 x 75 55 20 105 105
AG-1212 AT-1212 125 x 125 x 100 80 20 105 105
AG-1217 AT-1217 125 x 175 x 75 50 25 105 156
AG-1217-1 AT-1217-1 125 x 175 x 100 50 50 105 156
AG-1417 AT-1417 140 x 170 x 95 75 20 122 152
AG-1423 AT-1423 140 x 230 x 90 70 20 122 211
AG-1520 AT-1520 150 x 200 x 100 80 20 132 182
AG-1520-1 AT-1520-1 150 x 200 x 130 80 50 132 182
AG-1525 AT-1525 150 x 250 x 100 80 20 132 232
AG-1525-1 AT-1525-1 150 x 250 x 130 80 50 132 232
AG-1717 AT-1717 175 x 175 x 75 50 25 156 156
AG-1717-1 AT-1717-1 175 x 175 x 100 50 50 156 156
AG-1725 AT-1725 175 x 250 x 75 50 25 156 232
AG-1725-1 AT-1725-1 175 x 250 x 100 50 50 156 232
AG-2020-S AT-2020-S 200 x 200 x 95 75 20 182 182
AG-2020 AT-2020 200 x 200 x 130 110 20 182 182
AG-2819 AT-2819 280 x 190 x 130 100 30 255 165
AG-2819-1 AT-2819-1 280 x 190 x 180 100 80 255 165
AG-2828 AT-2828 280 x 280 x 130 100 30 255 255
AG-2828-1 AT-2828-1 280 x 280 x 180 100 80 255 255
AG-2834 AT-2834 280 x 340 x 130 100 30 315 255
AG-2838 AT-2838 280 x 380 x 130 100 30 355 255
AG-2838-1 AT-2838-1 280 x 380 x 180 100 80 355 255

*Product Specifications Subject To Changes Without Prior Notice.
